5 Evaluate Custom Presidio Analyzer

# install presidio evaluator via pip if not yet installed

#!pip install presidio-evaluator
#!pip install "presidio-analyzer[transformers]"

import json
import warnings
from collections import Counter
from pathlib import Path
from pprint import pprint

warnings.filterwarnings('ignore')

import pandas as pd
from presidio_analyzer import (
    AnalyzerEngine,
    Pattern,
    PatternRecognizer,
    RecognizerRegistry,
)
from presidio_analyzer.context_aware_enhancers import LemmaContextAwareEnhancer
from presidio_analyzer.nlp_engine import SlimSpacyNlpEngine
from presidio_analyzer.predefined_recognizers.ner import HuggingFaceNerRecognizer

from presidio_evaluator import InputSample
from presidio_evaluator.entity_mapping import CanonicalMapper
from presidio_evaluator.evaluation import ModelError, Plotter, SpanEvaluator
from presidio_evaluator.experiment_tracking import get_experiment_tracker
from presidio_evaluator.models import PresidioAnalyzerWrapper

pd.set_option('display.max_columns', None)
pd.set_option('display.max_rows', None)
pd.set_option('display.max_colwidth', None)

%reload_ext autoreload
%autoreload 2
%matplotlib inline

dataset_name = "synth_dataset_v2.json"
dataset = InputSample.read_dataset_json(Path(Path.cwd().parent, "data", dataset_name))

print(len(dataset))

tokenizing input:   0%|          | 0/1500 [00:00<?, ?it/s]

loading model en_core_web_sm


tokenizing input: 100%|██████████| 1500/1500 [00:04<00:00, 302.00it/s]

1500

def get_entity_counts(dataset: list[InputSample]) -> dict:
    """Return a dictionary with counter per entity type."""
    entity_counter = Counter()
    for sample in dataset:
        for tag in sample.tags:
            entity_counter[tag] += 1
    return entity_counter

entity_counts = get_entity_counts(dataset)
print("Count per entity:")
pprint(entity_counts.most_common(), compact=True)

print(
    "\nMin and max number of tokens in dataset: "
    f"Min: {min([len(sample.tokens) for sample in dataset])}, "
    f"Max: {max([len(sample.tokens) for sample in dataset])}"
)

print(
    f"Min and max sentence length in dataset: "
    f"Min: {min([len(sample.full_text) for sample in dataset])}, "
    f"Max: {max([len(sample.full_text) for sample in dataset])}"
)

Count per entity:
[('O', 19626), ('STREET_ADDRESS', 3071), ('PERSON', 1369), ('GPE', 521),
 ('ORGANIZATION', 504), ('PHONE_NUMBER', 350), ('DATE_TIME', 219),
 ('TITLE', 142), ('CREDIT_CARD', 136), ('US_SSN', 80), ('AGE', 74), ('NRP', 55),
 ('ZIP_CODE', 50), ('EMAIL_ADDRESS', 49), ('DOMAIN_NAME', 37),
 ('IP_ADDRESS', 22), ('IBAN_CODE', 21), ('US_DRIVER_LICENSE', 9)]

Min and max number of tokens in dataset: Min: 3, Max: 78
Min and max sentence length in dataset: Min: 9, Max: 407

# Defin a slim Nlp Engine (we're using a Presidio recognizer instead of a Presidio NLP Engine)
nlp_engine = SlimSpacyNlpEngine()
nlp_engine.load()

# # Map OpenMed model entities to Presidio entities
mapping = {
    # Personal Info - Names & Demographics
    "first_name": "FIRST_NAME",
    "last_name": "LAST_NAME",
    "age": "AGE",
    "gender": "GENDER",
    "date_of_birth": "DATE_OF_BIRTH",
    "blood_type": "BLOOD_TYPE",
    "occupation": "OCCUPATION",
    "education_level": "EDUCATION_LEVEL",
    "employment_status": "EMPLOYMENT_STATUS",
    "language": "LANGUAGE",
    "race_ethnicity": "ETHNICITY",
    "sexuality": "SEXUALITY",
    "political_view": "POLITICAL_VIEW",
    "religious_belief": "RELIGIOUS_BELIEF",
    "biometric_identifier": "BIOMETRIC_IDENTIFIER",
    "pin": "ID",
    # Identifiers (20+ types)
    "account_number": "ACCOUNT_NUMBER",  # FINANCIAL_PII branch (bank/IBAN accounts), not generic ID
    "customer_id": "ID",
    "employee_id": "ID",
    "unique_id": "ID",
    "bank_routing_number": "US_BANK_NUMBER",
    "swift_bic": "SWIFT_CODE",
    "certificate_license_number": "PROFESSIONAL_LICENSE",  # GOVERNMENT_ID branch (matches US_DRIVER_LICENSE), not PHI
    "medical_record_number": "MEDICAL_LICENSE",
    "health_plan_beneficiary_number": "ID",
    "credit_debit_card": "CREDIT_CARD",
    "cvv": "CVV",
    "ssn": "US_SSN",
    "tax_id": "ID",
    "license_plate": "LICENSE_PLATE",
    "vehicle_identifier": "ID",
    "mac_address": "ID",
    "device_identifier": "ID",
    # Authentication & Security
    "password": "PASSWORD",
    "user_name": "USER_NAME",
    # Contact Info (4 types)
    "email": "EMAIL_ADDRESS",
    "phone_number": "PHONE_NUMBER",
    "fax_number": "PHONE_NUMBER",
    "url": "URL",
    # Location (6 types)
    "city": "CITY",
    "country": "COUNTRY",
    "county": "COUNTY",
    "state": "STATE",
    "street_address": "STREET_ADDRESS",
    "coordinate": "COORDINATE",
    "postcode": "ZIP_CODE",
    # Network Info
    "ipv4": "IP_ADDRESS",
    "ipv6": "IP_ADDRESS",
    # Temporal (3 types)
    "date": "DATE_TIME",
    "date_time": "DATE_TIME",
    "time": "DATE_TIME",
    # Organization (1 type)
    "company_name": "COMPANY",
}

ner_recognizer = HuggingFaceNerRecognizer(
        model_name="OpenMed/OpenMed-PII-SuperClinical-Large-434M-v1",
        label_mapping=mapping,
        aggregation_strategy="first"
    )

# another option: OpenMed/OpenMed-PII-BioClinicalModern-Base-149M-v1

def get_titles_recognizer():
    titles_recognizer = PatternRecognizer(
        deny_list=["Mr.", "Mrs.", "Ms.", "Miss", "Dr.", "Prof."],
        supported_entity="TITLE",
        name="TitlesRecognizer",
    )
    return titles_recognizer


def get_years_recognizer():
    years_recognizer = PatternRecognizer(
        patterns=[Pattern("YEAR", r"\b(19|20)\d{2}\b", score=0.1)],
        supported_entity="DATE_TIME",
        name="YearsRecognizer",
        context=["year", "at", "date", "in", "on"],
    )
    return years_recognizer


def get_age_recognizer():
    weak_regex = r"\b(110|[1-9]?[0-9])\b"
    age_pattern = Pattern(name="age (very weak)", regex=weak_regex, score=0.01)
    age_recognizer = PatternRecognizer(
        supported_entity="AGE",
        patterns=[age_pattern],
        name="AgeRecognizer",
        context=["month", "old", "turn", "age", "y/o"],
    )
    return age_recognizer


# Create Recognizer Registry
registry = RecognizerRegistry()
registry.load_predefined_recognizers(nlp_engine=nlp_engine)

# Add custom pattern recognizers
registry.add_recognizer(ner_recognizer)
registry.add_recognizer(get_titles_recognizer())
registry.add_recognizer(get_years_recognizer())
registry.add_recognizer(get_age_recognizer())

# Remove unnecessary recognizers from presidio
unnecessary = [
    "NhsRecognizer",
    "UkNinoRecognizer",
    "SgFinRecognizer",
    "AuAbnRecognizer",
    "AuAcnRecognizer",
    "AuTfnRecognizer",
    "AuMedicareRecognizer",
    "InPanRecognizer",
    "InAadhaarRecognizer",
    "InVehicleRegistrationRecognizer",
    "InPassportRecognizer",
    "InVoterRecognizer",
    "CryptoRecognizer",
    "SpacyRecognizer",
]

for rec in unnecessary:
    registry.remove_recognizer(rec)

Device set to use cpu

# Set up the context aware enhancer
context_enhancer = LemmaContextAwareEnhancer(
    context_prefix_count=10, context_suffix_count=10
)

# Set up the engine and other PII recognizers
analyzer_engine = AnalyzerEngine(
    nlp_engine=nlp_engine,
    context_aware_enhancer=context_enhancer,
    registry=registry,
    default_score_threshold=0.3,
)

# analyzer_engine = AnalyzerEngine()

pprint("Supported entities for English:")
pprint(analyzer_engine.get_supported_entities("en"), compact=True)

print("\nLoaded recognizers for English:")
pprint(
    [
        rec.name
        for rec in analyzer_engine.registry.get_recognizers("en", all_fields=True)
    ],
    compact=True,
)

print("\nLoaded Context Aware Enhancer:")
print(analyzer_engine.context_aware_enhancer.__class__.__name__)
pprint(json.dumps(analyzer_engine.context_aware_enhancer.__dict__), compact=True)

'Supported entities for English:'
['US_DRIVER_LICENSE', 'SEXUALITY', 'MAC_ADDRESS', 'MEDICAL_LICENSE', 'US_ITIN',
 'COORDINATE', 'LANGUAGE', 'SWIFT_CODE', 'ACCOUNT_NUMBER', 'URL',
 'PHONE_NUMBER', 'COUNTY', 'FIRST_NAME', 'LICENSE_PLATE', 'US_SSN',
 'EDUCATION_LEVEL', 'DATE_TIME', 'COMPANY', 'IP_ADDRESS', 'STATE', 'BLOOD_TYPE',
 'COUNTRY', 'OCCUPATION', 'GENDER', 'EMAIL_ADDRESS', 'PROFESSIONAL_LICENSE',
 'PASSWORD', 'USER_NAME', 'POLITICAL_VIEW', 'RELIGIOUS_BELIEF', 'ID',
 'IBAN_CODE', 'CITY', 'TITLE', 'CREDIT_CARD', 'STREET_ADDRESS', 'US_PASSPORT',
 'EMPLOYMENT_STATUS', 'AGE', 'BIOMETRIC_IDENTIFIER', 'DATE_OF_BIRTH',
 'ETHNICITY', 'LAST_NAME', 'CVV', 'ZIP_CODE', 'US_BANK_NUMBER']

Loaded recognizers for English:
['CreditCardRecognizer', 'UsBankRecognizer', 'UsLicenseRecognizer',
 'UsItinRecognizer', 'UsPassportRecognizer', 'UsSsnRecognizer',
 'DateRecognizer', 'EmailRecognizer', 'IbanRecognizer', 'IpRecognizer',
 'MedicalLicenseRecognizer', 'MacAddressRecognizer', 'PhoneRecognizer',
 'UrlRecognizer', 'HuggingFaceNerRecognizer', 'TitlesRecognizer',
 'YearsRecognizer', 'AgeRecognizer']

Loaded Context Aware Enhancer:
LemmaContextAwareEnhancer
('{"context_similarity_factor": 0.35, "min_score_with_context_similarity": '
 '0.4, "context_prefix_count": 10, "context_suffix_count": 10, '
 '"context_matching_mode": "substring"}')

# Test Analyzer
text = "Yesterday in Mt. Sinai AP: Dana Silver, 79 years old female was complaining of stomach pain. Her ID is 154555"
res = analyzer_engine.analyze(text=text, language="en", return_decision_process=True)
for result in res:
    print(f"Entity: {result.entity_type}, Text: {text[result.start : result.end]}")

Asking to truncate to max_length but no maximum length is provided and the model has no predefined maximum length. Default to no truncation.


Entity: FIRST_NAME, Text:  Dana
Entity: LAST_NAME, Text:  Silver,
Entity: AGE, Text:  79
Entity: CITY, Text:  Mt. Sinai
Entity: ID, Text:  154555
Entity: GENDER, Text:  female

# Wrap the analyzer
wrapped_analyzer = PresidioAnalyzerWrapper(
    analyzer_engine=analyzer_engine,
    score_threshold=analyzer_engine.default_score_threshold,
    language="en",
)

results_df = wrapped_analyzer.predict_dataset(dataset)
results_df.head()

# Analyze the results DataFrame.
# min_collision_count suppresses COLLISION_CROSS_BRANCH warnings with fewer
# cross-branch token co-occurrences than the threshold (rare label overlaps).
mapper = CanonicalMapper()
mapper.analyze(results_df, min_collision_count=5)
mapper.render_html()

# Suppress all those entities that the model detects but the dataset doesn't have annotations for (prediction-only labels)
mapper.suppress_prediction_only()

# Resolve all blocking (WARNING+) issues. Adjust mappings for your model's labels.
# PREDICTION_ONLY and COLLISION_CROSS_BRANCH are suppressed here — remap if appropriate.
resolutions = {}
for issue in mapper.get_issues():
    if issue.severity.value in ("warning", "error"):
        for lbl in issue.labels:
            resolutions[lbl] = None  # suppress — adjust as needed

if resolutions:
    mapper.map(resolutions)

mapped_results = mapper.get_mapped_results_dataframe()
mapper.render_html()

# Set up the experiment tracker and log model + dataset params
experiment = get_experiment_tracker()
params = {"dataset_name": dataset_name, "model_name": wrapped_analyzer.name}
params.update(wrapped_analyzer.to_log())
experiment.log_parameters(params)
experiment.log_dataset_hash(dataset)
experiment.log_parameter("entity_mappings", json.dumps(mapper.get_mapping()))

evaluator = SpanEvaluator(iou_threshold=0.75)
f_beta = 2  # F-beta parameter used throughout evaluation

skip words not provided, using default skip words. If you want the evaluation to not use skip words, pass skip_words=[]

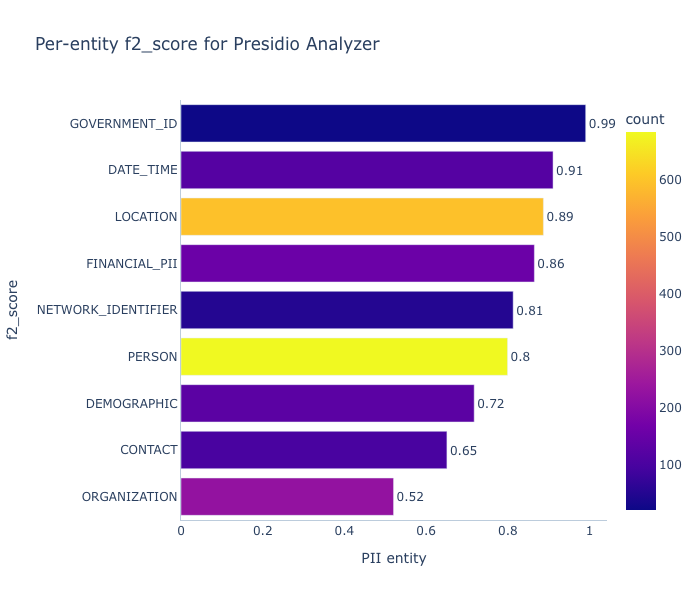

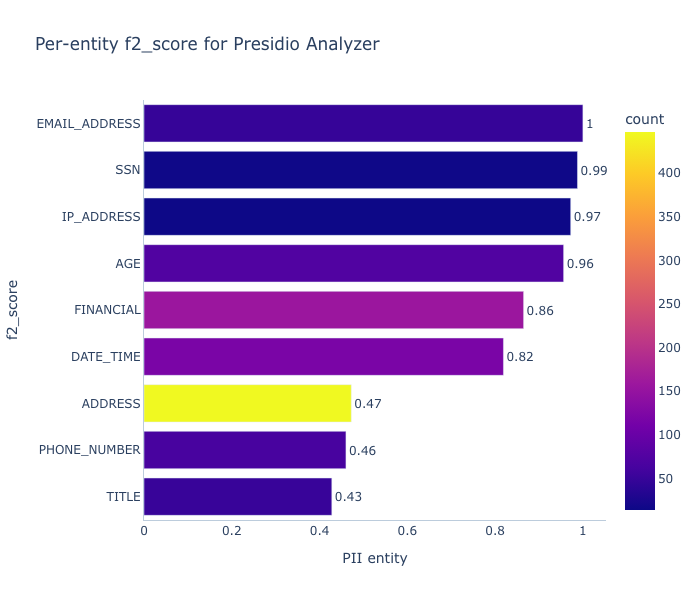

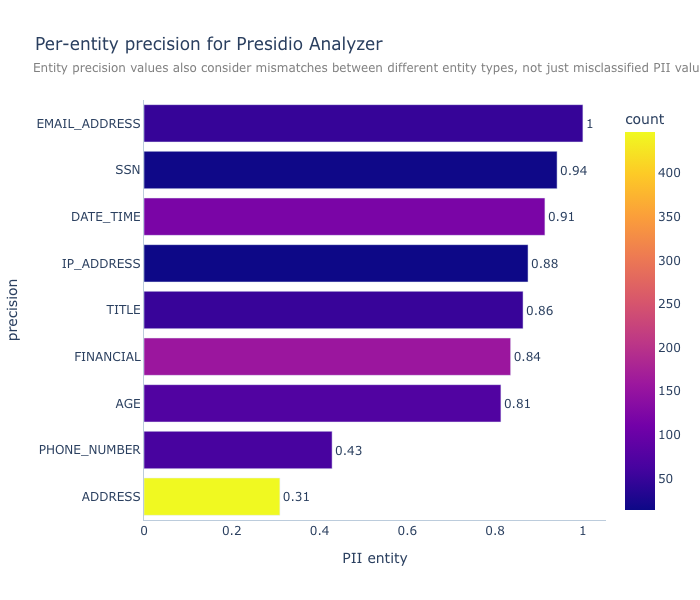

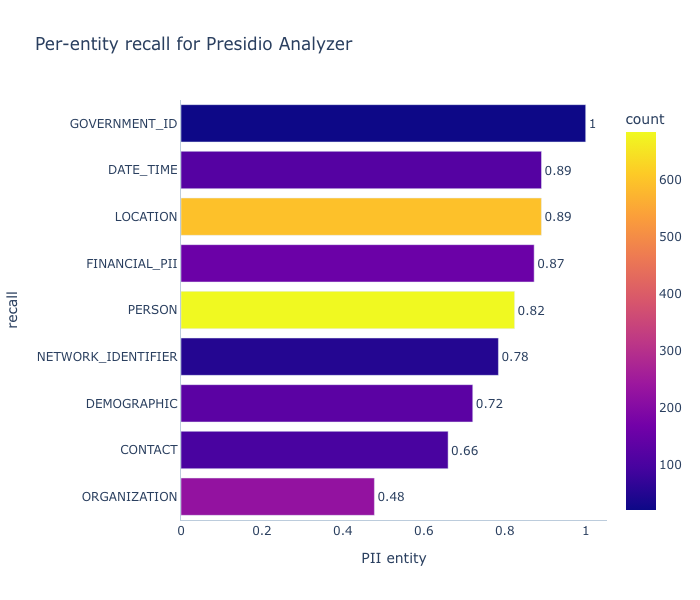

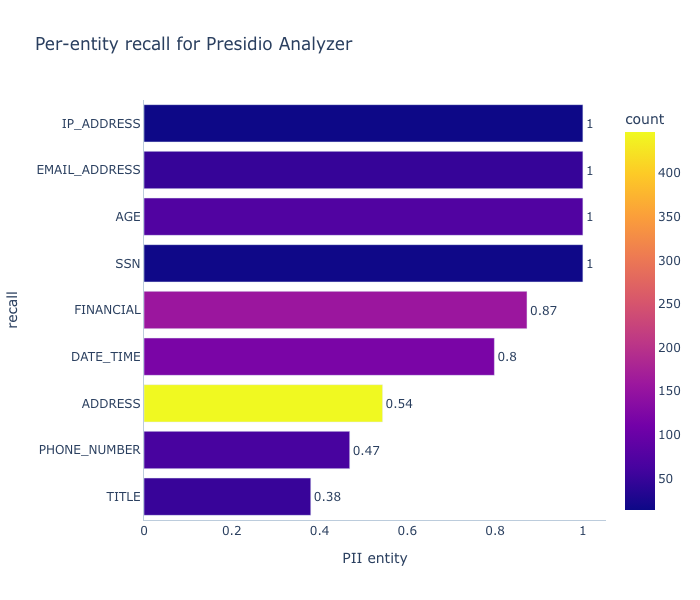

hierarchical_results = evaluator.calculate_hierarchical_scores(
    mapped_results,
    beta=f_beta
    )
binary_results = hierarchical_results["binary"]
branch_results = hierarchical_results["branch"]
detailed_results = hierarchical_results["detailed"]

# Log detailed-level metrics to experiment tracker
experiment.log_metrics(detailed_results.to_log())

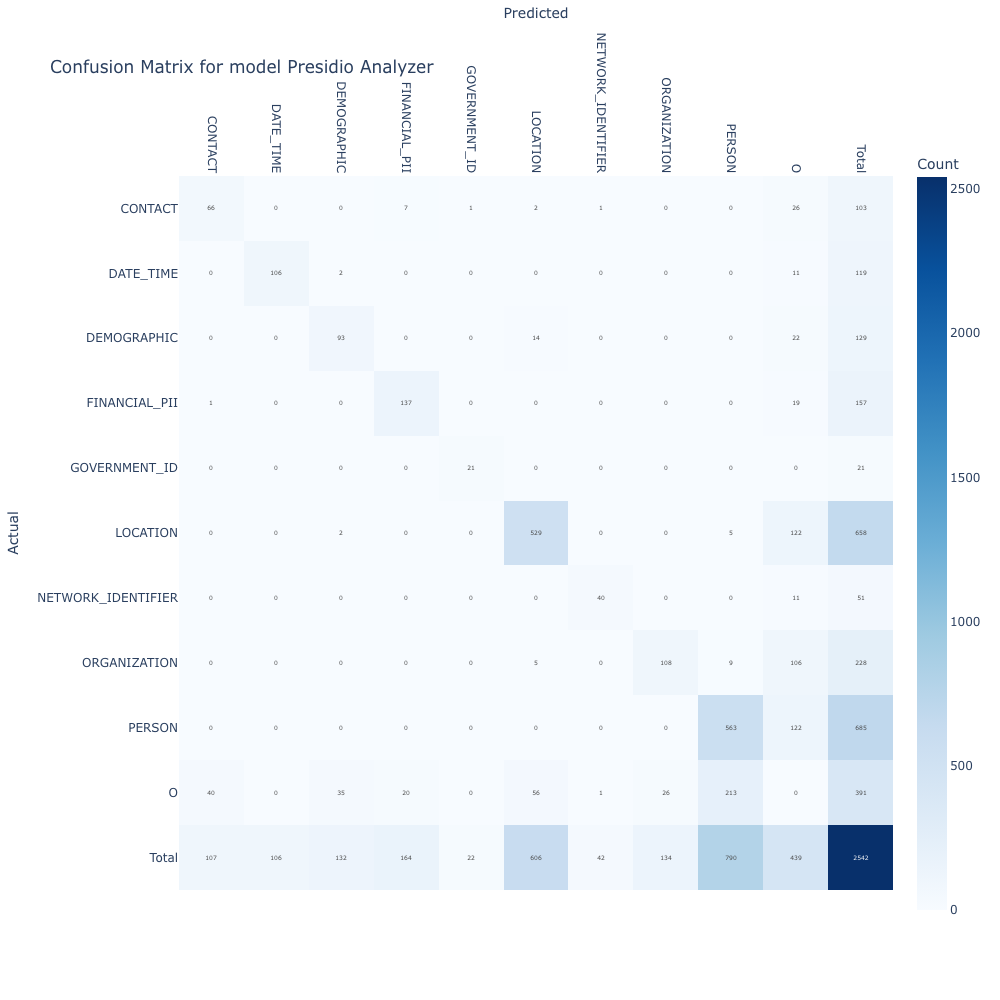

entities, confmatrix = detailed_results.to_confusion_matrix()
experiment.log_confusion_matrix(matrix=confmatrix, labels=entities)
experiment.end()

# A. Binary PII/O metrics
print("Level: binary (PII vs O):")
pprint({
    "Precision": round(binary_results.pii_precision, 3),
    "Recall":    round(binary_results.pii_recall, 3),
    f"F{f_beta}":  round(binary_results.pii_f, 3),
})

saving experiment data to /presidio-research/notebooks/experiment_20260723-102549.json
Level: binary (PII vs O):
{'F2': 0.91, 'Precision': 0.921, 'Recall': 0.907}

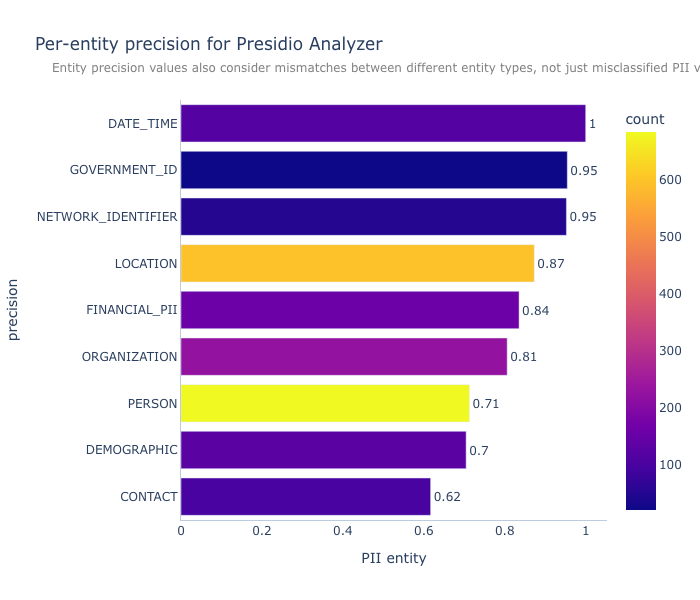

# B. Branch-level per-entity scores (PERSON, LOCATION, DATE_TIME, …)
branch_plotter = Plotter(
    results=branch_results,
    model_name=wrapped_analyzer.name,
    display_mode="interactive",
    beta=f_beta,
)
branch_plotter.plot_scores(include_pii_aggregate=False, annotation_entities_only=True)

# C. Detailed-level per-entity scores (NAME, GPE, PHONE_NUMBER, …)
detailed_plotter = Plotter(
    results=detailed_results,
    model_name=wrapped_analyzer.name,
    display_mode="interactive",
    beta=f_beta,
)
detailed_plotter.plot_scores(include_pii_aggregate=False, annotation_entities_only=True)

# D. Branch-level confusion matrix (only branch entities that appear in the data)
entities, confmatrix = branch_results.to_confusion_matrix()
branch_plotter.plot_confusion_matrix(entities=entities, confmatrix=confmatrix)

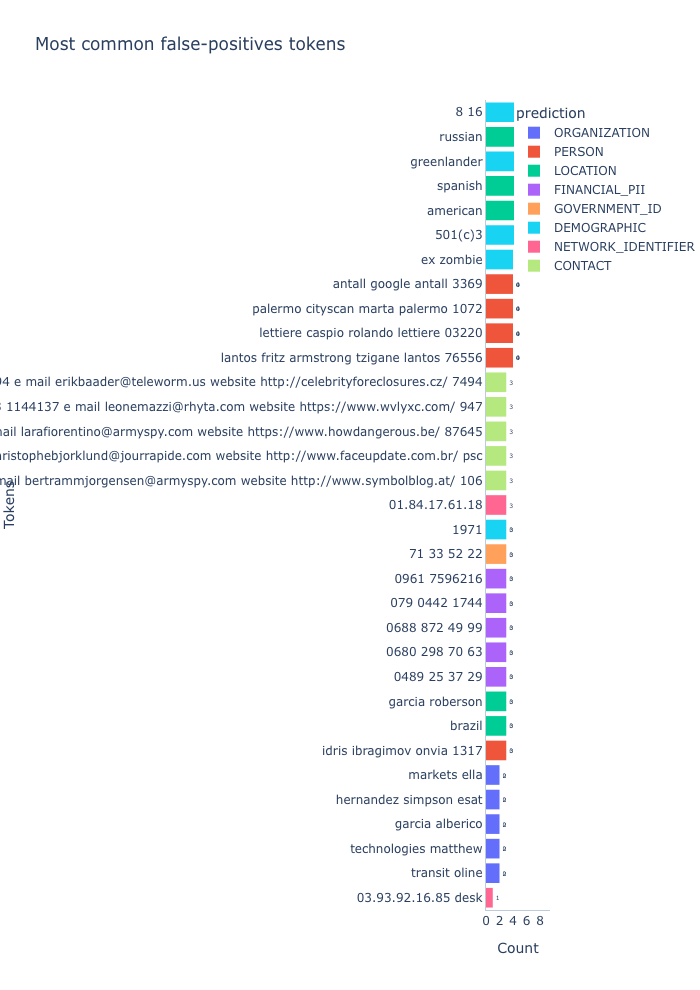

branch_plotter.plot_most_common_tokens()

ModelError.most_common_fp_tokens(branch_results.model_errors)

Most common false positive tokens:
[('8 16', 9),
 ('greenlander', 8),
 ('russian', 6),
 ('501(c)3', 5),
 ('antall google antall 3369', 4),
 ('ex zombie', 4),
 ('spanish', 4),
 ('american', 4),
 ('palermo cityscan marta palermo 1072', 4),
 ('lantos fritz armstrong tzigane lantos 76556', 4)]
---------------
Example sentence with each FP token:
    - 8 16 (`8 16` pred as DEMOGRAPHIC)
    - Greenlander (`greenlander` pred as DEMOGRAPHIC)
    - Russian (`russian` pred as LOCATION)
    - 501(c)3 (`501(c)3` pred as DEMOGRAPHIC)
    - Antall
 > Google Antall
 > 3369 (`antall google antall 3369` pred as PERSON)
    - ex - Zombie (`ex zombie` pred as DEMOGRAPHIC)
    - Spanish (`spanish` pred as LOCATION)
    - American (`american` pred as LOCATION)
    - Palermo
 > Cityscan
 > Marta Palermo
 > 1072 (`palermo cityscan marta palermo 1072` pred as PERSON)
    - Lantos
 > Fritz - Armstrong
 > Tzigane Lantos
 > 76556 (`lantos fritz armstrong tzigane lantos 76556` pred as PERSON)





[('8 16', 9),
 ('greenlander', 8),
 ('russian', 6),
 ('501(c)3', 5),
 ('antall google antall 3369', 4),
 ('ex zombie', 4),
 ('spanish', 4),
 ('american', 4),
 ('palermo cityscan marta palermo 1072', 4),
 ('lantos fritz armstrong tzigane lantos 76556', 4)]

fps_df = ModelError.get_fps_dataframe(branch_results.model_errors, entity="PERSON")
fps_df[["full_text", "token", "annotation", "prediction"]].head(20)

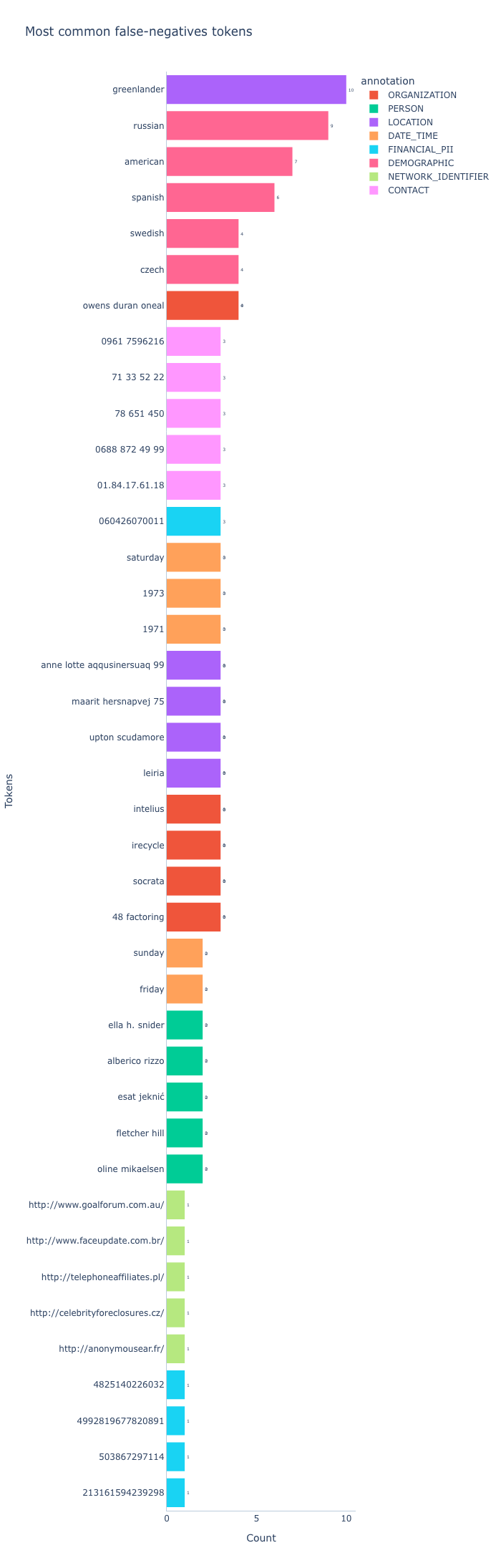

ModelError.most_common_fn_tokens(branch_results.model_errors, n=15)

Most common false negative tokens:
[('greenlander', 7),
 ('russian', 6),
 ('american', 5),
 ('spanish', 4),
 ('saturday', 3),
 ('owens duran oneal', 3),
 ('allianz', 3),
 ('czech', 3),
 ('swedish', 3),
 ('persint', 2),
 ('avalara', 2),
 ('upton scudamore', 2),
 ('evidera', 2),
 ('peerj', 2),
 ('0494 92 82 32', 2)]
---------------
Example sentence with each FN token:
    - Greenlander (`greenlander` annotated as LOCATION)
    - Russian (`russian` annotated as DEMOGRAPHIC)
    - American (`american` annotated as DEMOGRAPHIC)
    - Spanish (`spanish` annotated as DEMOGRAPHIC)
    - Saturday (`saturday` annotated as DATE_TIME)
    - owens , duran and oneal (`owens duran oneal` annotated as ORGANIZATION)
    - Allianz (`allianz` annotated as ORGANIZATION)
    - Czech (`czech` annotated as DEMOGRAPHIC)
    - Swedish (`swedish` annotated as DEMOGRAPHIC)
    - Persint (`persint` annotated as ORGANIZATION)
    - Avalara (`avalara` annotated as ORGANIZATION)
    - UPTON SCUDAMORE (`upton scudamore` annotated as LOCATION)
    - Evidera (`evidera` annotated as ORGANIZATION)
    - Peerj (`peerj` annotated as ORGANIZATION)
    - 0494 92 82 32 (`0494 92 82 32` annotated as CONTACT)





[('greenlander', 7),
 ('russian', 6),
 ('american', 5),
 ('spanish', 4),
 ('saturday', 3),
 ('owens duran oneal', 3),
 ('allianz', 3),
 ('czech', 3),
 ('swedish', 3),
 ('persint', 2),
 ('avalara', 2),
 ('upton scudamore', 2),
 ('evidera', 2),
 ('peerj', 2),
 ('0494 92 82 32', 2)]

fns_df = ModelError.get_fns_dataframe(branch_results.model_errors, entity="PERSON")

fns_df[["full_text", "token", "annotation", "prediction"]].head(20)
